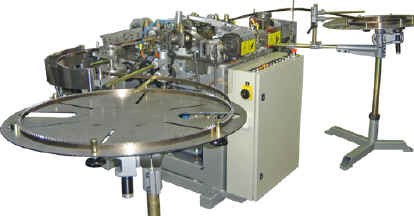

Fully automatic sharpening machine for bow saw blades

The machine will sharp and set bow saw blades fully automatic from coils. The blade will be sharpened on both sides at the same time by several files. The number of files is depended of the tooth clusters.
The setting of a sharpened tooth cluster is done during the sharpening cycle and is controlled by the feed of the sharpening machine. The setting device has one set of easily exchangeable setting jaws. Adjustment of the setting result is conveniently done with two screws on each side. The blade is firmly held by a jaw during the setting operation.

Technical data

Peg tooth: Clustered teeth of four or six tooth
Four & raker: Clustered teeth of four
Cluster length: Max 50,8 (2”)

Capacity: Max 60 tooth clusters / min
Voltage: 240/400 V, 50-60Hz
Motor power: 0,76 kW
Control system: Mitsubishi PLC
